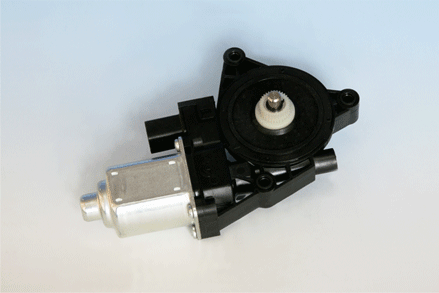

Motor without module

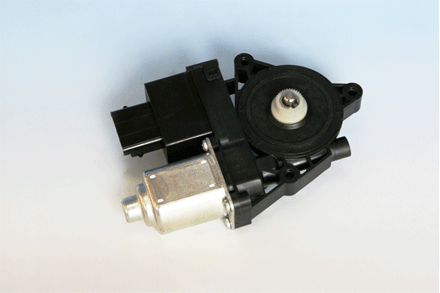

PWR motor is the driver unite of window regulator, which is mainly divided into general PWR motor and Smart motor with anti-pinch module.
The PWR motor, which is composed of a motor shell parts, armature parts, brush- holder, gearbox, electronic module (specific the anti-pinch motor) etc. It is fixed on the bracket of the power window regulator. The motor drives the window up or down through the parts of PWR as soon as the input activity. PWR motor with module has the anti-pinch function, when it rising and clamping body or objects, the window will automatically drop, so as to avoid the human and objects being hurt.
At present, STEC has the capability that developing and producing PWR Motor and Smart Motor.
Main Parameter
a) Rated Torque：4Nm(Front Motor)、
3Nm（Rear Motor）
b) Rated Current: ≤10A（13VDC 、25℃）
c) Stall Torque： 8~14.5Nm(13VDC、25℃)
d) Stall Current：≤25A（13VDC 、25℃）
e) Operating Voltage: 9~16VDC
f) Operating Temperature: -40~80℃
Main Function
a) Window automatic up and down function
b) Motor thermal protection function and
anti-theft function
c) Anti-pinch function (only for the
smart motor)
d) Auto up and down function (only for
smart motor)
